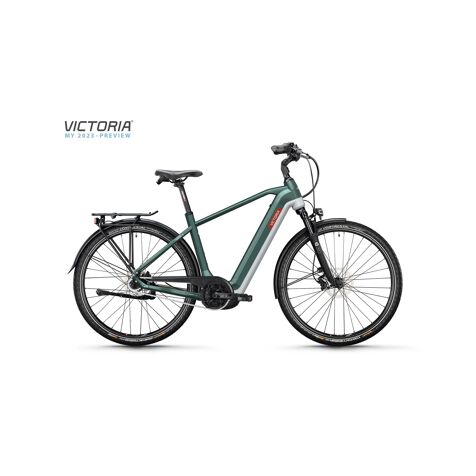

VICTORIA MANOC 5
Victoria
Description
"Victoria MANOC 5 gents "
The golden mean of the MANOC premium trekking series with gear hub is the MANOC 5. With its permissible overall weight of 170 kg, MANOC 5 is a perfect companion for everyday trips and touring. The MIK pannier rack system allows adding saddlebags and more, without having to worry about anything moving out of place.
Just like in all innovative VICTORIA designs, the battery pack integrated in the lower pipe can easily be lifted up and out without having to worry about dropping it. In view of the high capacity of the battery pack and its resulting intrinsic weight, we do, however, recommend charging it directly on the MANOC for greater convenience.
The BOSCH Smart System with its Performance CX drive and the high-capacity PowerTube 750 battery pack delivers state of the art results. Any additional information not displayed on the Kiox 300 colour display, can be gleaned via the eFlow Bike app on any smartphone. That information can then be utilised by other apps for e.g. navigation.
The stepless Enviolo gear hub and timing belt ensure that maintenance tasks are reduced to an absolute minimum. The air-suspension fork with its 80 mm travel offers plenty of comfort, as it absorbs the remaining forces that the wide, yet low rolling resistance tyres pass on to the frame.
Specifications
| Frame: | Bosch-Intube-Frame, Aluminium 6061 |
| Dropout: | Slider Dropout |
| Bottom Bracket: | BOSCH |
| Shifting lever: | ENVIOLO, Drehgriff stufenlos |
| Charger: | BOSCH 4 Ah |
| Sensor: | Tretkraftmessung im Motor + Geschwindigkeitssensor |
| Spokes: | 2,0 mm, Niro, black |
| Stem: | ERGOTEC "Octopus XL Ahead 50", Ø31,8 mm, 85mm, verstellbar, schwarz |
| Saddle: | SELLE ROYAL "Orbis" Moderate |
Technical data
| Category: | trekking bike |
| E-bike: | yes |
| Bosch Smart System: | yes |
| Drive system: | Bosch |
| Drive version: | middle motor |
| Battery capacity: | 750 Wh |
| Support: | till 25km/h |
| Sex: | gents |
| Frame shape: | diamond |
| Frame size: | S |
| Frame height: | 50 cm |
| Wheel size: | 28" |
| Drive: | belt drive |
| Shifting type: | hub gear |
| Gears: | stepless |
| Circuit brand: | Enviolo |
| Shifting model: | HD |
| Brake system: | hydraulic disc brake |
| Travel: | 80 mm |
| Features: | suspension fork, frame lock, chain guard, electronic sliding aid, fender |
| Permissible total weight: | 170 kg |
| Material: | aluminium |
| Colour: | green, black |
| Colour designation: | illusion green matt |
| Weight: | 29,20 kg |
| EAN | 4251971109841 |
