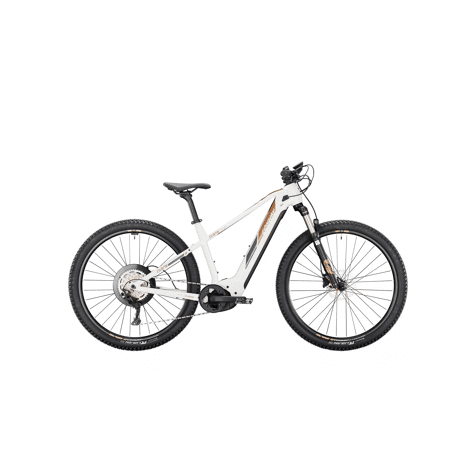

CONWAY CAIRON S 5.0
CONWAY
Description
With the "Cairon S 5.0" takes CONWAY a new family member in the "Cairon" series. Like its siblings, the e-hardtail also appears in a tidy look, as the aluminum frame completely accommodates the "PowerTube" battery. With a full 750 Wh, it supplies the sporty BOSCH "Performance CX" motor of the fourth and thus latest generation. The overall low center of gravity makes it possible to ride this E-MTB naturally and balanced. The 29" wheels provide excellent rolling characteristics.
The drive is improved by the SHIMANO "Deore" 10-speed derailleur, which also provides high shifting precision in demanding terrain. On tour, the bike scores with its stable straight-line stability, the 120 mm travel of the RST fork and the 58 mm wide "Ruban" tires from CONTINENTAL. To keep the thrust in check, the "Cairon S 5.0" is equipped with hydraulic disc brakes from TEKTRO, whose forces can also be finely dosed on long downhill rides. The disc diameter is 180 mm front and rear.
All in all, the "Cairon S 5.0" is an electric mountain bike that you can use for sporty and crisp rides over gravel roads as well as for extensive tours through the countryside. In any case, the battery has enough capacity for all eventualities. And if not the battery can either be removed from the frame at the bottom for charging, or you can use the charging socket on the side if you want to charge it quickly and easily during a break.
Specifications
| CADRE: | CONWAY Intube Bosch, Alu |
| PATTE DE DÉRAILLEUR: | 0281180/0 |
| FOURCHE: | RST "Blade Air", 120mm |
| JEUX DE DIRECTION: | ZS56 / ZS56, Blocklock |
| BRAS DE MANIVELLE: | MIRANDA "PSI", 170 mm |
| PLATEAU / POULIE: | MIRANDA "Gen4 Narrow Wide 52 CL", 38 Z., w CG |
| BOÎTIER DE PÉDALIER: | BOSCH |
| FREINS: | TEKTRO "HD-M280" |
| LEVIER DE FREIN: | TEKTRO "HD-M280" |
| DISQUE DE FREIN AVANT: | TEKTRO "TR180-35", 180 mm |
| DISQUE DE FREIN ARRIÈRE: | TEKTRO "TR180-35", 180 mm |
| MANETTES: | TEKTRO "SL-M350" |
| DÉRAILLEUR ARRIÈRE: | TEKTRO "RD-T 350-E", 9speed, w. clutch |
| CASSETTE: | TEKTRO "CS-M350", 11-46 Z. |
| CHAINE: | SHIMANO "HG53" |
| MOTEUR: | BOSCH Mittelmotor Gen.4 "Performance CX", 36 V, 250 W |
| BATTERIE: | BOSCH "Powertube 750", Lithium-Ionen mit BMS, 750 Wh |
| CHARGEUR: | Bosch 4 Ah |
| UNITÉ DE COMMANDE: | BOSCH "BRC3600" |
| ECRAN: | BOSCH, "Kiox 300", 4-Stufen, Remote Control, Schiebehilfe |
| CAPTEUR: | Tretkraftmessung im Motor + Geschwindigkeitssensor |
| JANTES: | CONWAY Hohlkammer "X17", Disc |
| RAYONS: | Niro |
| MOYEU AVANT: | CONWAY "Alloy", 15x110mm |
| MOYEU ARRIÈRE: | CONWAY "Alloy", 12x148 mm |
| PNEU AVANT: | CONTINENTAL "Ruban", 58-622 |
| PNEU ARRIÈRE: | CONTINENTAL "Ruban", 58-622 |
| CINTRE: | LEVEL 9 "Race Riser", Ø 31,8, 780 mm |
| POTENCE: | LEVEL 9 "Team A-Head", 31,8 mm, 40 mm |
| POIGNÉES: | SQLAB "70X" |
| SELLE: | SELLE ROYAL "Vivo Athletic Ergo", He |
| TIGE DE SELLE: | CONWAY Patent, 31,6 mm, 350 mm |
| PÉDALES: | VP "VPE-506" |
INFORMATIONS TECHNIQUES
| CATÉGORIE: | hardtail |
| VAE: | oui |
| BOSCH SMART SYSTEM: | oui |
| SYSTÈME D'ENTRAÎNEMENT: | Bosch |
| VARIANTE D'ENTRAÎNEMENT: | moteur central |
| CAPACITÉ DE BATTERIE: | 750 Wh |
| ASSISTANCE: | jusqu'à 25 km/h |
| SEXE: | homme |
| FORME DU CADRE: | Diamant |
| TAILLE DE ROUE: | 29" |
| TRANSMISSION/ ENTRAÎNEMENT: | transmission par chaîne |
| VITESSES: | 9 vitesses |
| TRANSMISSION: | 1x 9-fach |
| MODÈLE DE LA TRANSMISSION: | Tektro |
| SYSTÈME DE FREINAGE: | frein à disque hydraulique |
| DÉBATTEMENT DE LA FOURCHE: | 120 mm |
| ÉQUIPEMENT: | fourche suspendue, aide électronique à la poussée |
| POIDS TOTAL AUTORISÉ: | 130 kg |
| MATÉRIAU: | aluminium |
| POIDS: | 24,90 kg |
